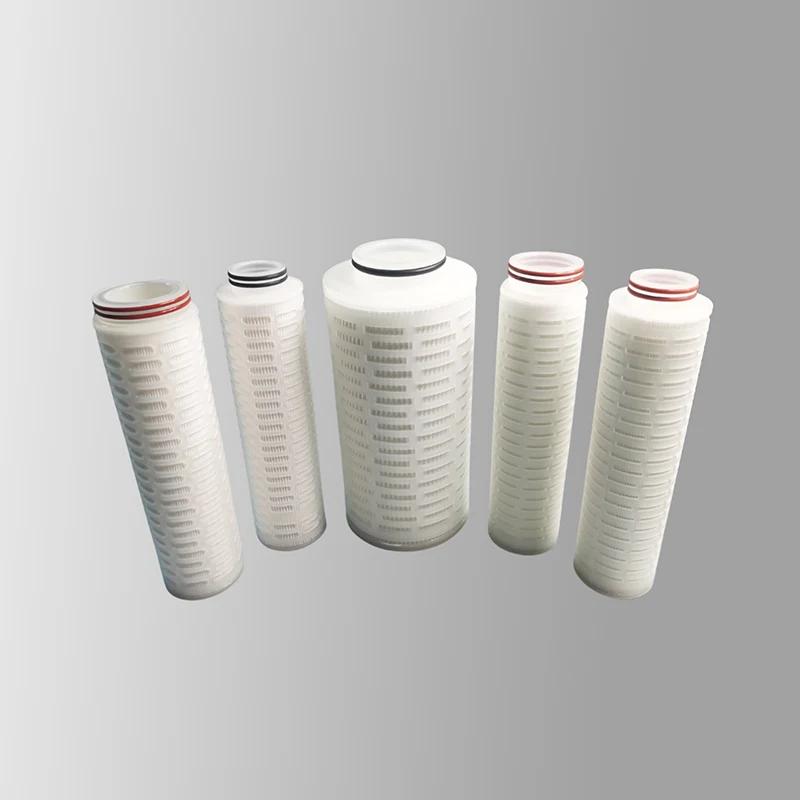

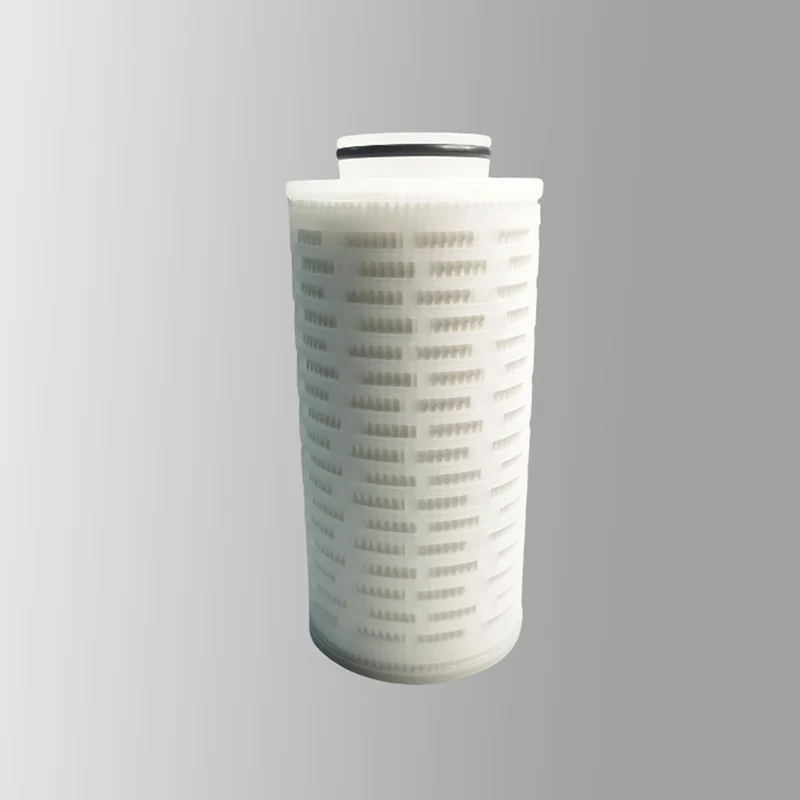

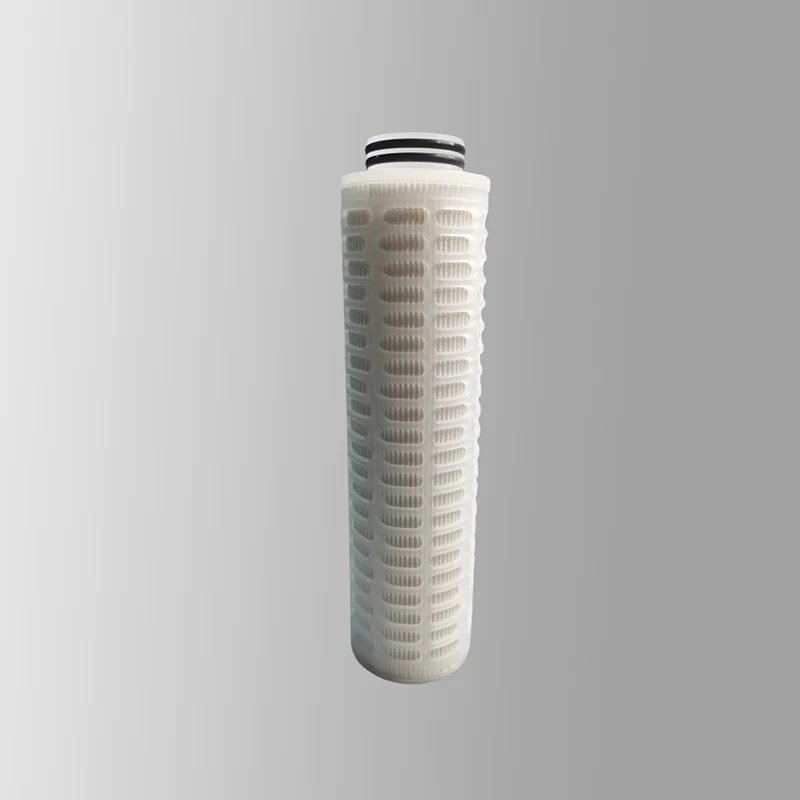

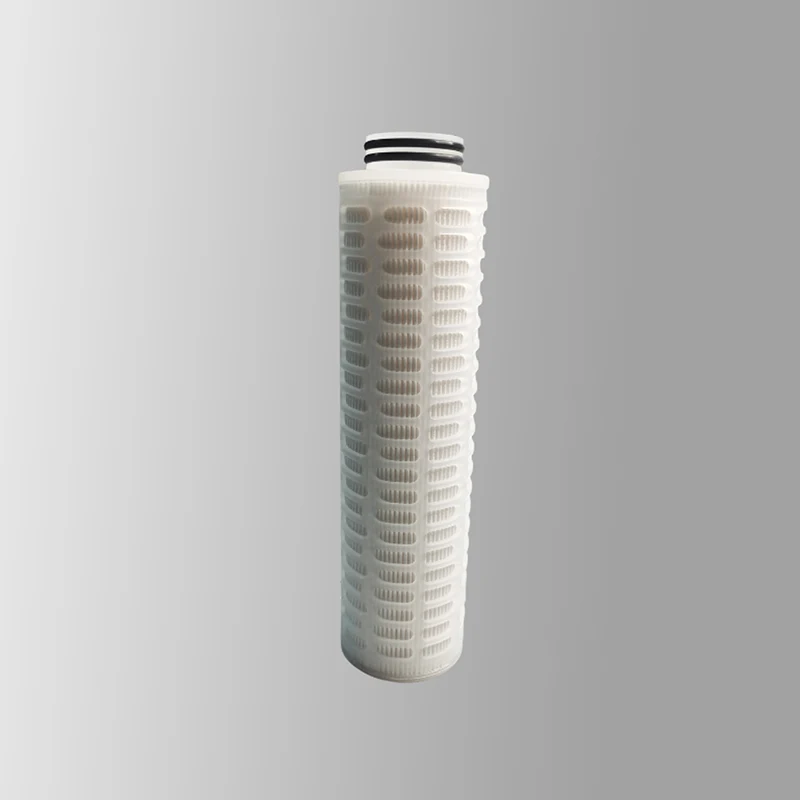

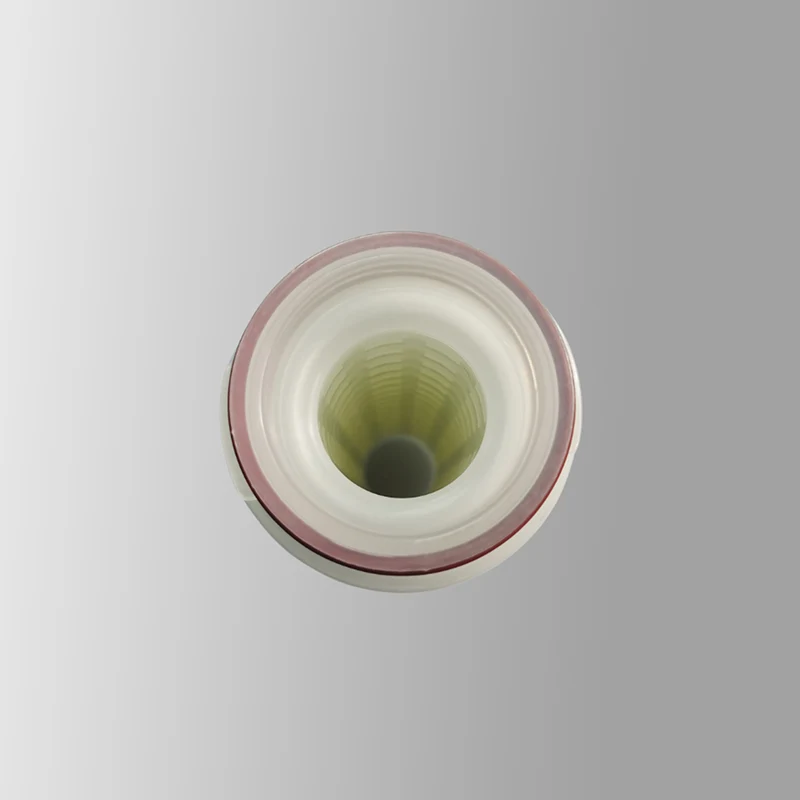

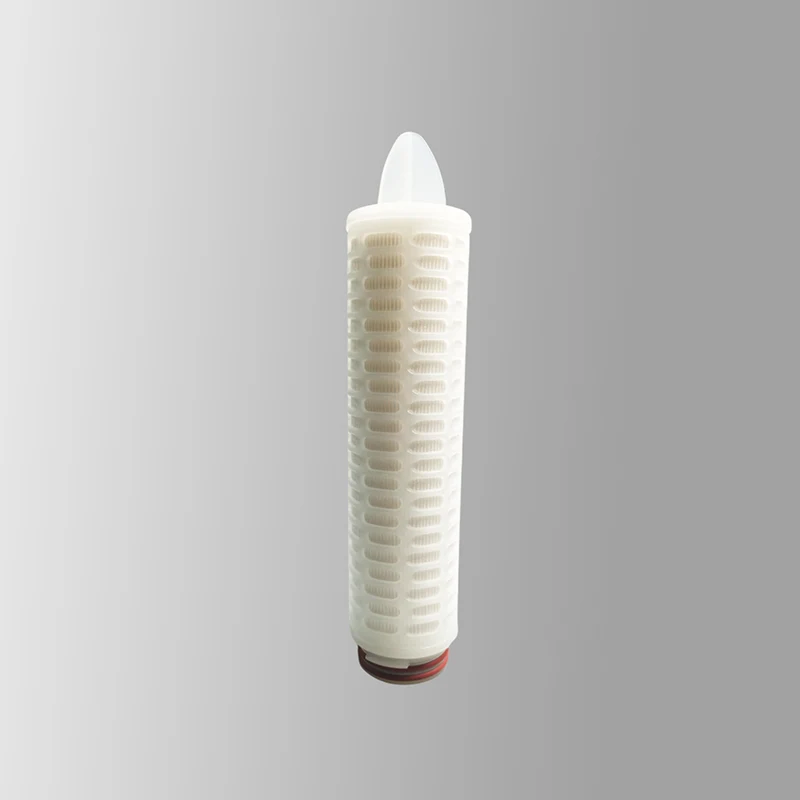

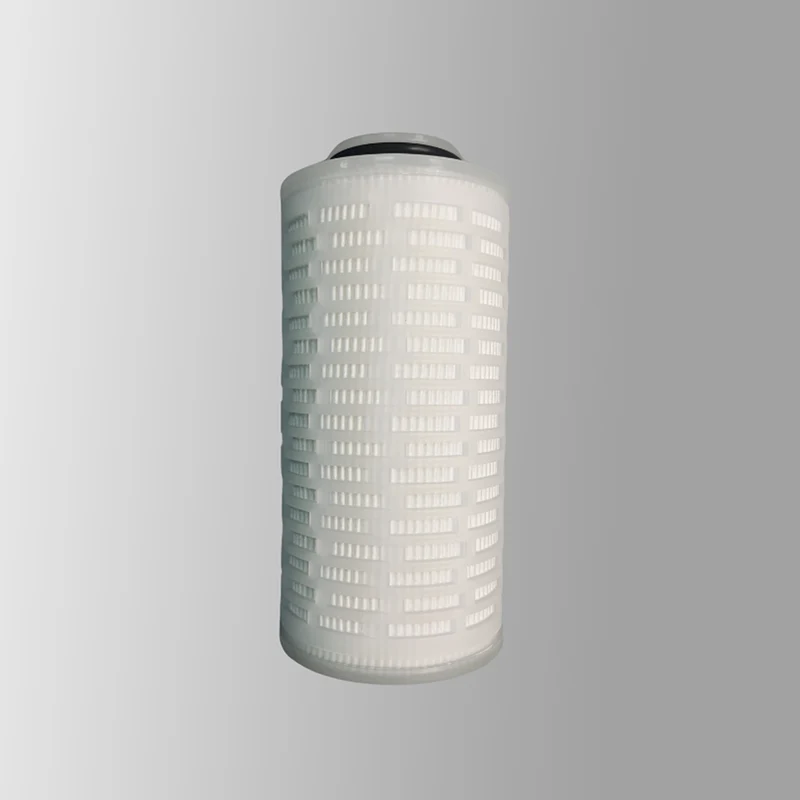

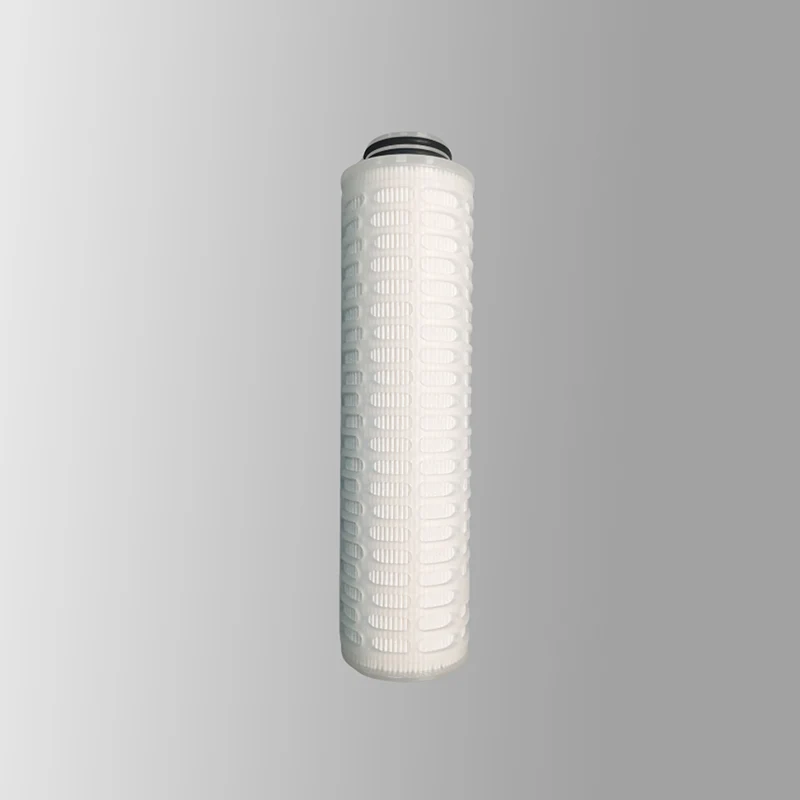

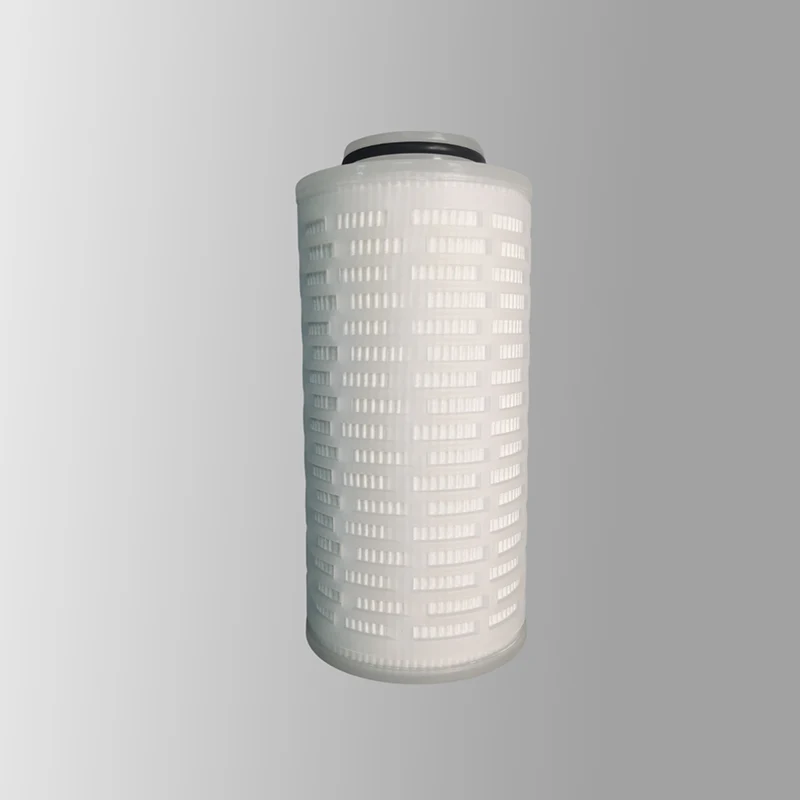

Absolute Precision PP Filter Cartridge

Biosep Filtration is a manufacturer with a decade of expertise in producing filter cartridges. As a supplier, we possess the capability to independently design products and production lines. For a substantial period, Biosep Filtration has been consistently supplying filter cartridges crafted from diverse materials, including but not limited to PP, PES, PTFE, and Nylon, to clients across the globe.

Absolute accuracy offers broad chemical compatibility, higher dirt-holding capacity, high flow rates at low pressure drop and low extraction rates. Available in 0.6µm, 1.0µm, 3.0µm, 5.0µm, 7.0µm, 10µm, 20µm, 30µm, 50µm. Welcome to order our high-quality OEM Absolute Precision PP Filter Cartridges.

Benefits

·Wide chemical compatiblity

·High dirt hold capacity

·High retention

·Thermal bonding

·Non-fiber releasing

Typical Applications

·Process Water

·Vinegar

·Aqueous solutions

·Beer,Wine and Spirits

·Juice,Soft Drinks,Edible Oils

·Bulk Chemicals

·Pharmaceutical intermediates

Length:

5 to 40 inches (12.7 to 101.6 cm) nominal

Outside Diameter:2.70 inches (7.0 cm) nominal

Maximum operating parameters

Differential Pressure

·Forward 50 psid (3.4 bard) at 20 ℃(68℉)

·Reverse 40 psid (2.7 bard) at 20℃(68 ℉)

Operating Temperature 82 ℃(180 °℉) at 10 psid(0.69 barg) in water

Recommended Changeout Pressure:35psid(2.4barg)

Food Safety Compliance

Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations, 21CFR.

Materials used to produce filter media and hardware are safe for use in contact with foodstuffs in accordance with EU Directives 10/2011

Construction Materials

Filter Media:Polypropylene

Media Support: Polypropylene

End Caps:Polypropylene

Inner Core:Polypropylene

Outer Cage: Polypropylene

Sealing Method: Thermal Bonding

O-rings: Buna, Viton(or FKM), EP, Silicone,Encapsulated Silicone,

Encapsulated Viton (or FKM)

Toxicity

All plastic parts meet the specifications for biological safety per USP Class VI-121'C for plastics.
